City of Oakland data set: Streets (center-of-pavement lines)

Who maintains the data for this layer: Joan Curtis, OPB

Data Maintainer Phone: (510) 238-4777

Who converted the data into a GIS format: Kyle Draganov, JWL, & JHS

GIS Technician Phone: unlisted

Size of GIS layer (KB): 9600

Size of export file (KB): 18772

Where is the layer stored (on the k-drive): k:\gisdata\trans\streets.e00

This GIS layer was last updated on: 3/19/97

This metadata was last updated on: 3/20/97

This layer's FGDC category description is: Transportation

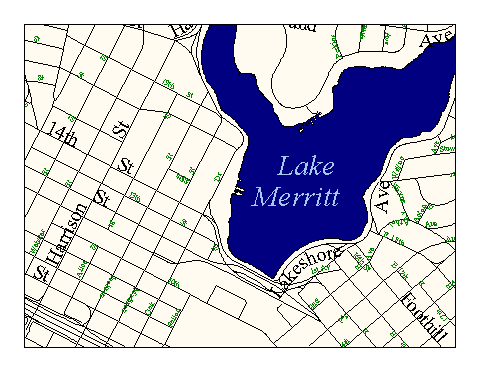

Data Set Description: This data set delineates the center-of-pavement of streets, freeways, and overpasses for the Cities of Oakland and Piedmont. Similar to a TIGER street file, but with higher coordinate and attribute accuracy, "Streets" captures data on each block's address range on both sides of the street, the name and type of street or freeway, and the zipcodes on each side of the street, (however, attribute data accuracy is not guaranteed within the City of Piedmont). "Streets" is suitable for geocoding functions.

Non-standard Attributes in table:

L_F_ADD: Left From-address--the address on the left side of the beginning of the arc (street).
L_T_ADD: Left To-address--the address on the left side of the end of the arc (street).
R_F_ADD: Right From-address--the address on the right side of the beginning of the arc (street).
R_T_ADD: Right To-address--the address on the right side of the end of the arc (street).
PREFIX: The prefix portion of a parsed address. (e.g. the "E" in E 14th ST, NW)
NAME: The name portion of a parsed address. (e.g. the "14th" in E 14th ST, NW)
TYPE: The type portion of a parsed address. (e.g. the "ST" in E 14th ST, NW)
SUFFIX: The suffix portion of a parsed address. (e.g. the "NW" in E 14th ST, NW)
ALIAS: Streets alias' (such as: highway numbers, private roads, roads maintained by other entities than Oakland.
ROUTE: Codes used for the establishment of impedances (e.g. 1 = one-way street where traffic flow is opposite arc digitization direction, 1a = same as 1 but higher traffic volume street, 2 = one-way street where traffic flow matches arc digitization direction, 2a = same as 2 but higher traffic volume street, 3 = neighborhood two-way street, 4 = minor arterial two-way street, 5 = major arterial two-way street, 6 = freeway where traffic flow is opposite arc digitization direction, 7 = freeway where traffic flow matches arc digitization direction.)
CFCC: Census Feature Class Code. Values in this field are not complete for the entire layer. Populated fields are relics from the original TIGER streets. (e.g. A40. See TIGER documentation for CFCC code definitions. TIGER documentation is located on k:\gisdata\metadata\cfcc.doc.)
ZIPL: Zip code on left side of street. (e.g. 94610)
ZIPR: Zip code on right side of street. (e.g. 94612)
SPEED: Estimated daily average speed of auto travel in Miles per Hour used to calculate impedances for routing. (e,g. 50, 40, 35, 30, or 20)
FT-IMP: Impedances assigned to streets according to digitization direction for routing purposes. Impedance is a calculated by the Djykstra's formula: (length/speed)(60/5280) = impedance.
TF-IMP: Impedances assigned to streets according to digitization direction for routing purposes. See Djykstra's formula above.
U_ID: Unique identification number.

Data Source History: Linework: Hammon, Jenson, Wallen & Assoc. captured centerlines from a 1:40 scale digital orthophoto flown by (Pacific Aerial Surveys) in a semi-automatic process. Streets concealed by thick vegetation were inferred from paper maps in the Office of Planning and Building (see Q/C history).Conflation of "tiger" attributes: HJW's centerlines were delivered to OCIS in autocad format. Jonathan Lowe (LKC) separated the autocad files into 306 tiles corresponding to the orthophoto tiles. Jonathan then opened all of the autocad files Arcview2.1 where he isolated the centerlines from other autocad layers, merged the 306 tiles into a single line shapefile (Avenue script: merge), and converted the shapefile into an unintelligent arc/info coverage called "roads." He then copied the attributes from the "tiger" streets file to the corresponding lines of the "roads" coverage using an arc/info process called conflation.Attributes: Conflated "tiger" attributes in the "roads" coverage were then corrected by comparison to OPB Sanborne and other maps. Each street segment was checked individually by a team of five GIS analysts. The final, fully corrected coverage was named "streets." This task was overseen by Kyle Draganov, Earthwise Consulting.

Quality Check: The streets centerlines editing was performed and overseen by Earthwise consulting with the help of 4 other consultants. All address ranges and street names were copied and verified using circa 1920's linen and 1905 Sanbourne maps in the City of Oakland's Office of Planning and Building. These maps were the most up-to-date "gold standard" available and contained the only source of many years of hand-drafted updates. Any centerlines not represented on the gold-standard paper maps were then checked and completed by Joan Curtis of the OPB.An additional quality control check was performed indirectly by Jake Schweitzer, In Situ Consulting, during the establishment of an annotation layer for the "streets" coverage. Jake reported streets missing names or having incorrect names to Kyle Draganov for correction.

Security restrictions: Public layer--no security restrictions

Update Frequency: As data changes (average apprx. 10 changes per year)

Update process: Joan Curtis of OPB adds new streets as they are built or found missing and updates the data using ArcView 3.0. After she has made edits it is necessary to build the coverage again in ArcInfo and correct any item distortion that may occur in conversion. OCIS GIS staff perform the ArcInfo conversion and post the updates to the k-drive. A detailed update process flow description exists in k:\gisdata\metadata\update.doc (a MS Word document).
